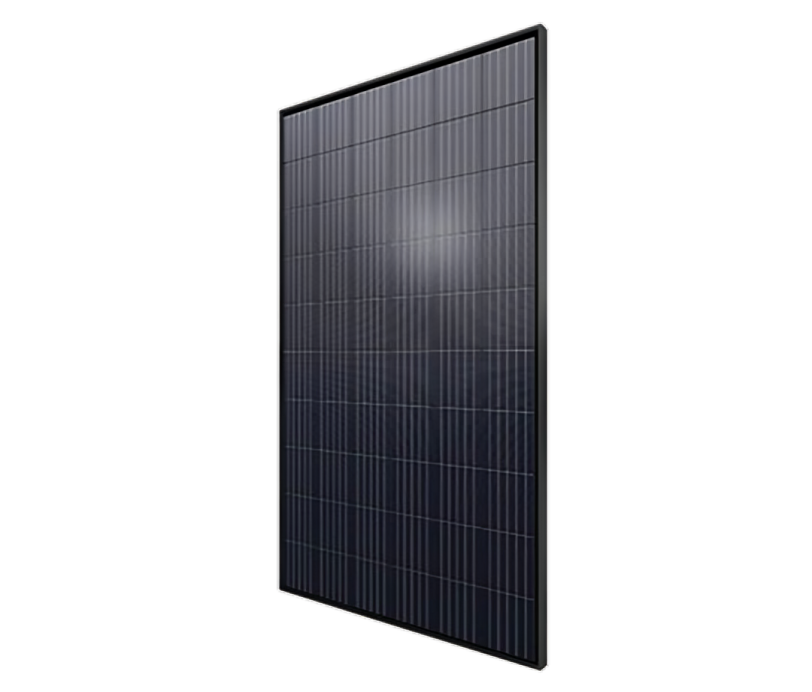

Crossroad Solar CRS 72-390 BB 390w Solar Modules

Crossroad Solar CRS 72-390 BB 390w Solar Modules

Regular price $135
Sale price $135 Regular price
SOLD OUT
Leave a Review

MPN No: CRS 72-390

Crossroad Solar CRS 72-390 BB 390w Solar Modules

Crossroad Solar CRS 72-390 BB 390w Solar Modules

Leave a Review
Regular price $135
Sale price $135 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Crossroad Solar
Weight
48.5 lb
Dimension
79.17 x 40.20 x 1.575 inches

Crossroad Solar CRS 72-390 BB 390w Solar Modules

Introducing the Crossroad Solar CRS 72-390 BB, a state-of-the-art solar module that stands out in the renewable energy market. Known for its exceptional efficiency and durability, this module is an ideal choice for both residential and commercial applications.

  • High-efficiency GI Mono Crystalline Silicon Solar Cells
  • Durable design with a 25-year performance warranty
  • Advanced technology ensuring high power output (390 Watts)
  • Optimized for performance in diverse environmental conditions
  • American-made, ensuring quality and reliability

Technology and Overview

The CRS 72-390 BB module uses advanced GI Mono Crystalline Silicon Solar Cells for maximum efficiency. Its robust construction and innovative design make it a leading choice in solar technology.

Installation and Compatibility Overview

These modules are designed for easy installation and are compatible with various mounting systems, making them versatile for different settings.

Benefits and Applications Overview

With cost-saving efficiency and a significant reduction in carbon footprint, the CRS 72-390 BB is perfect for both residential and commercial solar projects.

Specification Details
Max Power (Watts) 390
Open Circuit Voltage Voc 49.25
Short Circuit Current Isc 10.24
Voltage Max Power Vmp 41.9
Current Max Power Imp 9.66
SKU CRS 72-390
Module Efficiency 19
Power Tolerance 0.03
Operating Temperature Range -40 °C (-40 °F) to 85 °C (185 °F)
Maximum Series Fuse Rating 20A
Temperture Coefficient of Voc -0.36%/°C
Temperture Coefficient of Pmax -0.38%/°C
Maximum System Voltage 1500Vdc
Temperture Coefficient of Isc 0.068%/°C
Solar Cells GI, Mono Crystalline Silicon
Cell Orientation 72 cells (6x12)
Module Dimension
(Lx W x H)
2011mm x 1021mm x 44mm
(79.17in x 40.20in x 1.575in)
Weight 22kg (48.5 lbs)
Front Glass 3.2mm (tempered, low iron, ARC)
Frame Anodized Aluminum
Encapsulant EVA
Junction Box IP 68
Cables 1 meter
Connector MC4
Number of modules per pallet 26
Pallet Dimensions  81in x 44in x 45in
Pallet Weight  400kg
Number of pallets per container 28
UL/IEC Certification UL 61730, IEC 61215, CEC Listed
